ISW、ISWR、ISWH、ISWB型臥式管道離心泵（簡稱ISW、ISWR、ISWH、ISWB管道泵），是新型的臥式離心泵，根據用途不同，分為：
1、ISW型(臥式清水管道泵)，供輸送清水及物理化學性質類似于清水的其它液體之用，適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套，使用溫度T≤80℃。
2、ISWR型(臥式熱水泵)廣泛適用于：冶金、化工、紡織、造紙以及賓館飯店等鍋爐熱水增壓循環輸送及城市采暖系統，ISWR型使用溫度T≤120℃。
3、ISWH型（臥式化工泵），供輸送不含固體顆粒，具有腐蝕性、粘度類似于水的液體，適用于石油、化工、冶金、電力、造紙、食品制藥和合成纖維等部門，使用溫度為-20℃～+120℃。
4、ISWB臥式管道油泵，供輸送汽油、煤油、柴油等油類產品或易燃、易爆液體，被輸送介質溫度為-20～+120℃。該產品由臥式管道泵廠：上海依耐泵閥有限公司生產制造。
ISW、ISWR、ISWH、ISWB管道泵的產品特點
運行平穩：泵軸的絕對同心度及葉輪優異的動靜平衡，保證平穩運行，絕無振動。
滴水不漏：不同材質的硬質合金密封，保證了不同介質輸送均無泄漏。
噪 音 低：兩個低噪音的軸承支撐下的水泵，運轉平穩，除電機微弱聲響，基本無噪音。
故障率低：結構簡單合理，關鍵部分采用國際一流品質配套，整機無故障工作時間大大提高。
維修方便：更換密封、軸承、簡易方便。
占地更省：出口可向左、向右、向上三個方向，便管道布置安裝，節省空間。
ISW、ISWR、ISWH、ISWB管道泵工作條件
1、吸入壓力≤1.0MPa，或泵系統最高工作壓力≤1.6MPa，即泵吸入口壓力+泵揚程≤1.6MPa、泵靜壓試驗壓力為2.5MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1.6MPa時應在訂貨時另行提出。以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2、環境溫度＜40℃，相對濕度＜95%。
3、所輸送介質中固本顆粒體積含量不超過單位體積的0.1%，粒度＜0.2mm。
注：如使用介質為帶有細小顆粒，請?jiān)谟嗀洉r(shí)注明，以便廠家采用耐磨式機械密封。

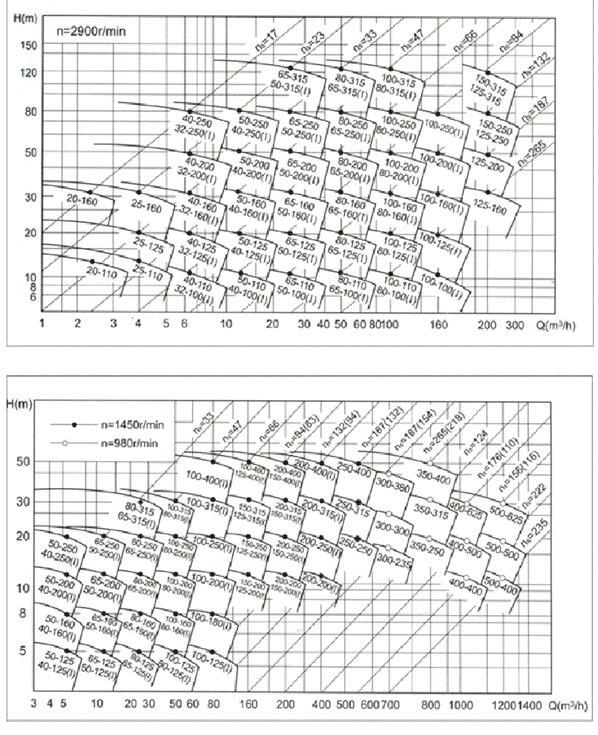

ISW、ISWR、ISWH、ISWB管道泵型譜圖
ISW、ISWR、ISWH、ISWB管道泵性能參數
| 型號 |
流量Q |
揚程 m |
效率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
型號 |
流量 |
揚程 m |
效 率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
| m3/h |
l/s |
m3/h |
l/s |
| 15-80 |
1.1 1.5 2.0 |
0.3 0.42 0.55 |
8.5 8 7 |
26 34 34 |
2800 |
0.18 |
2.3 |
40-125(Ⅰ) |
8.8 12.516.3 |
2.44 3.47 4.53 |
21.2 20 17.8 |
49 58 57 |
2900 |
1.5 |
2.3 |
| 20-110 |
1.8 2.5 3.3 |
0.5 0.69 0.91 |
16 15 13.5 |
25 34 35 |
2800 |
0.37 |
2.3 |
40-125(Ⅰ)A |
8 11 14.5 |
2.22 3.47 4.53 |
17 16 14 |
47 57 54 |
2900 |
1.1 |
2.3 |
| 20-160 |
1.8 2.5 3.3 |
0.5 0.69 0.91 |
33 32 30 |
19 25 23 |
2900 |
1.1 |
2.3 |
40-160(Ⅰ) |
8.8 12.5 16.3 |
2.44 3.47 4.58 |
33 32 30 |
45 52 51 |
2900 |
3.0 |
2.3 |
| 25-110 |
2.8 4 5.2 |
0.78 1.11 1.44 |
16 15 13.5 |
34 42 41 |
2900 |
0.55 |
2.3 |
40-160(Ⅰ)A |
8.2 11.7 15.2 |
2.28 3.47 4.53 |
29 28 26 |
44 51 50 |
2900 |
2.2 |
2.3 |
| 25-125 |
2.8 4 5.2 |
0.78 1.11 1.44 |
20.6 20 18 |
28 36 35 |
2900 |
0.75 |
2.3 |
40-160(Ⅰ)B |
7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
42 49 47 |
2900 |
1.5 |
2.3 |
| 25-125A |
2.5 3.6 4.6 |
0.69 1.0 1.28 |
17 16 14.4 |
27 35 34 |
2900 |
0.55 |
2.3 |
40-200 (Ⅰ) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
51.2 50 48 |
38 46 46 |
2900 |
5.5 |
2.3 |
| 25-160 |
2.8 4 5.2 |
0.78 1.11 1.44 |
33 32 30 |
24 32 33 |
2900 |
1.5 |
2.3 |
40-200(Ⅰ)A |
8.3 11.7 15.3 |
2.31 3.25 4.25 |
45 44 42 |
37 45 45 |
2900 |
4 |
2.3 |
| 25-160a |
2.6 3.7 4.9 |
0.72 1.03 1.36 |
29 28 26 |
22 31 32 |
2900 |
1.1 |
2.3 |
40-200(Ⅰ)B |
7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
35 44 42 |
2900 |
3 |
2.3 |
| 32-125 |
3.5 5 6.5 |
0.97 1.39 1.8 |
22 20 18 |
40 44 42 |
2900 |
0.75 |
2.3 |
40-250(Ⅰ) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
81.2 80 77.5 |
31 38 40 |
2900 |
11 |
2.3 |
| 32-125A |
3.1 4.5 5.8 |
0.86 1.25 1.61 |
17.6 16 14.4 |
38 42 40 |
2900 |
0.55 |
2.3 |
40-250(Ⅰ)A |
8.2 11.6 15.2 |
2.28 3.22 4.22 |
71 70 68 |
28 38 39 |
2900 |
7.5 |
2.3 |
| 40-100 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
13.2 12.5 11.3 |
48 54 53 |
2900 |
0.55 |
2.3 |
40-250(Ⅰ)B |
7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
28 37 37 |
2900 |
7.5 |
2.3 |
| 40-100A |
3.9 5.6 7.4 |
1.08 1.56 2.06 |
10.6 10 9 |
45 52 50 |
2900 |
0.37 |
2.3 |
40-250(Ⅰ)C |
7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 50.4 |
26 36 35 |
2900 |
5.5 |
2.3 |
| 40-125 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
21 20 18 |
41 46 43 |
2900 |
1.1 |
2.3 |
50-100 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.6 12.5 11.3 |
55 62 60 |
2900 |
1.1 |
2.3 |
| 40-125A |
3.9 5.6 7.4 |
1.08 1.56 2.06 |
17.6 16 14.4 |
40 45 41 |
2900 |
0.75 |
2.3 |
50-100A |
8 11 14.5 |
2.22 3.05 4.03 |
11 10 9 |
52 60 56 |
2900 |
0.75 |
2.3 |
| 40-160 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
33 32 30 |
35 40 40 |
2900 |
2.2 |
2.3 |
50-125 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 17.8 |
49 58 57 |
2900 |
1.5 |
2.3 |
| 40-160A |
4.1 5.9 7.8 |
1.44 1.64 2.17 |
29 28 26.3 |
34 39 39 |
2900 |
1.5 |
2.3 |
50-125A |
8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
47 57 54 |
2900 |
1.1 |
2.3 |
| 40-160B |
3.8 5.5 7.2 |
1.06 1.53 2.0 |
25.5 24 22.5 |
34 38 37 |
2900 |
1.1 |
2.3 |
50-160 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 |
3 |
2.3 |
| 40-200 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
51 60 59 |
26 33 32 |
2900 |
4 |
2.3 |
50-160A |
8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 |
2.2 |
2.3 |
| 40-200A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
45 44 42 |
26 31 30 |
2900 |
3 |
2.3 |
50-160B |
7.3 10.4 13.5 |
2.38 4.89 3.75 |
23 22 20.5 |
42 49 47 |
2900 |
1.5 |
2.3 |
| 40-200B |
3.7 5.3 7.0 |
1.03 1.47 1.94 |
38 36 34.5 |
23 29 27 |
2900 |
2.2 |
2.3 |
50-200 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
52 50 48 |
38 46 46 |
2900 |
5.5 |
2.3 |
| 40-250 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
82 80 74 |
24 28 28 |
2900 |
7.5 |
2.3 |
50-200A |
8.3 11.7 15.3 |
2.31 3.25 4.25 |
45.8 44 42 |
37 45 45 |
2900 |
4 |
2.3 |
| 40-250A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
72 70 65 |
24 28 27 |
2900 |
5.5 |
2.3 |
50-200B |
7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
35 44 42 |
2900 |
3 |
2.3 |
| 40-250B |
3.8 5.5 7.0 |
1.06 1.53 1.94 |
61.5 60 56 |
23 27 26 |
2900 |
4 |
2.3 |
50-250 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
82 80 77.5 |
29 28 40 |
2900 |
11 |
2.3 |
| 40-100(Ⅰ) |
8.8 12.516.3 |
2.44 3.47 4.53 |
13.2 12.5 11.3 |
55 62 60 |
2900 |
1.1 |
2.3 |
50-250A |
8.2 11.6 15.2 |
2.28 3.22 4.22 |
71.5 70 68 |
28 38 39 |
2900 |
7.5 |
2.3 |
| 型號 |
流量Q |
揚程 m |
效率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
型號 |
流量 |
揚程 m |
效 率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
| m3/h |
l/s |
m3/h |
l/s |
| 40-100(Ⅰ)A |
8 11 14.5 |
2.22 3.47 4.53 |
10.6 10 9 |
52 60 56 |
2900 |
0.75 |
2.3 |
50-250B |
7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
28 37 37 |
2900 |
7.5 |
2.3 |
| 50-100(Ⅰ) |
17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2800 |
1.5 |
2.5 |
65-200 |
17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 |
7.5 |
2.5 |
| 50-100(Ⅰ)A |
15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2800 |
1.1 |
2.5 |
65-200A |
16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 |
7.5 |
2.5 |
| 50-125(Ⅰ) |
17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 |
3 |
2.5 |
65-200B |
15.2 21.8 28.3 |
4.22 6.06 7.86 |
40 38 34.5 |
45 55 55 |
2900 |
5.5 |
2.5 |
| 50-125(Ⅰ)A |
15.5 22.3 29 |
4.33 6.19 8.1 |
17 16 13.6 |
58 66 65 |
2900 |
2.2 |
2.5 |
65-250 |
17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 |
15 |
2.5 |
| 50-160(Ⅰ) |
17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 |
4 |
2.5 |
65-250A |
16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 |
11 |
2.5 |
| 50-160(Ⅰ)A |
16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 |
4 |
2.5 |
65-250B |
15 21.6 28 |
4.17 6.0 7.78 |
61 60 57.4 |
38 49 54 |
2900 |
11 |
2.5 |
| 50-160(Ⅰ)B |
15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
49 58 54 |
2900 |
3 |
2.5 |
65-315 |
17.5 25 32.5 |
4.86 6.94 9.03 |
127 125 122 |
32 40 44 |
2900 |
30 |
2.5 |
| 50-200(Ⅰ) |
17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 |
7.5 |
2.5 |
65-315A |
16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
32 40 44 |
2900 |
22 |
2.5 |
| 50-200(Ⅰ)A |
16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 |
7.5 |
2.5 |
65-315B |
15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
30 39 42 |
2900 |
22 |
2.5 |
| 50-200(Ⅰ)B |
15.2 21.8 28.3 |
4.22 6.06 7.86 |
40 38 34.5 |
45 55 55 |
2900 |
5.5 |
2.5 |
65-315C |
14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
28 38 40 |
2900 |
15 |
2.5 |
| 50-250(Ⅰ) |
17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 |
15 |
2.5 |
65-100(Ⅰ) |
35 50 65 |
9.72 13.6 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 |
3 |
3.0 |
| 50-250(Ⅰ)A |
16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 |
11 |
2.5 |
65-100(Ⅰ)A |
31.3 44.7 58 |
8.7 12.4 16.1 |
11 10 8 |
66 72 69 |
2900 |
2.2 |
3.0 |
| 50-250(Ⅰ)B |
15 21.5 28 |
4.17 6.0 7.78 |
61 60 57.4 |
38 49 54 |
2900 |
11 |
2.5 |
65-125(Ⅰ) |
35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 |
5.5 |
3.0 |
| 50-315(Ⅰ) |
17.5 25 32.5 |
4.86 6.94 9.03 |
128 125 122 |
30 40 44 |
2900 |
30 |
2.5 |
65-125(Ⅰ)A |
31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 |
4 |
3.0 |
| 50-315(Ⅰ)A |
16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
30 40 44 |
2900 |
22 |
2.5 |
65-160(Ⅰ) |
35 50 65 |
9.72 13.9 18.1. |
35 32 28 |
63 71 70 |
2900 |
7.5 |
3.0 |
| 50-315(Ⅰ)B |
15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
30 39 42 |
2900 |
22 |
2.5 |
65-160(Ⅰ)A |
32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 24 |
62 70 69 |
2900 |
7.5 |
3.0 |
| 50-315(Ⅰ)C |
14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 48 40 |
2900 |
15 |
2.5 |
65-160(Ⅰ)B |
30.3 43.3 56.3 |
8.4 12.0 15.6 |
26 24 21 |
60 69 67 |
2900 |
5.5 |
3.0 |
| 65-100 |
17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 |
1.5 |
2.5 |
65-200(Ⅰ) |
35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 |
15 |
3.0 |
| 65-100A |
15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 |
1.1 |
2.5 |
65-200(Ⅰ)A |
32.8 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 |
11 |
3.0 |
| 65-125 |
17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 |
3 |
2.5 |
65-200(Ⅰ)B |
30.543.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
52 65 65 |
2900 |
7.5 |
3.0 |
| 65-125A |
15.6 22.3 29 |
4.33 6.19 8.1 |
17 16 14.4 |
58 66 65 |
2900 |
2.2 |
2.5 |
65-250(Ⅰ) |
35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 |
22 |
3.0 |
| 65-160 |
17.5 25 32.5 |
4.86 9.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 |
4 |
2.5 |
65-250(Ⅰ)A |
32.5 46.7 61 |
9.0 13.0 16.9 |
73 70 63 |
52 65 65 |
2900 |
18.5 |
3.0 |
| 65-160A |
16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 63 59 |
2900 |
4 |
2.5 |
65-250(Ⅰ)B |
30 43.3 56 |
8.3 12.0 15.6 |
62 60 54 |
50 58 58 |
2900 |
15 |
3.0 |
| 型號 |
流量Q |
揚程 m |
效率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
型號 |
流量 |
揚程 m |
效 率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
| m3/h |
l/s |
m3/h |
l/s |
| 65-160B |
15.0 21.6 28 |
4.17 6.1 7.78 |
26 24 20.6 |
49 58 54 |
2900 |
3 |
2.5 |
|
|
|
|
|
|
|
|
| 65-315(Ⅰ) |
35 50 65 |
9.72 13.9 18.1 |
128 125 121 |
44 54 57 |
2800 |
37 |
3.0 |
80-160(Ⅰ) |
70 100 130 |
19.4 27.8 36.1 |
36.5 32 24 |
70 76 65 |
2900 |
15 |
4.5 |
| 65-315(Ⅰ)A |
32.5 46.5 60.5 |
9.0 12.9 16.8 |
112.6 110 106.4 |
43 54 57 |
2800 |
37 |
3.0 |
80-160(Ⅰ)A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
32 28 21 |
68 74 67 |
2900 |
11 |
4.5 |
| 65-315(Ⅰ)B |
31 44.5 58 |
8.6 12.4 16.1 |
102.5 100 98 |
41 53 55 |
2900 |
30 |
3.0 |
80-16(Ⅰ)B |
60.6 86.6 112.5 |
16.8 24.1 31.3 |
27 24 18 |
65 72 64 |
2900 |
11 |
4.5 |
| 65-315(Ⅰ)C |
29 41 53.6 |
8.0 11.4 14.9 |
98 85 83 |
38 50 52 |
2900 |
22 |
3.0 |
80-200(Ⅰ) |
70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
65 74 73 |
2900 |
22 |
4.0 |
| 80-100 |
35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 |
3 |
3.0 |
80-200(Ⅰ)A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
47.5 44 37 |
64 73 72 |
2900 |
18.5 |
4.0 |
| 80-100A |
31.3 44.7 58 |
8.7 12.4 16.1 |
11 10 8 |
66 72 69 |
2900 |
2.2 |
3.0 |
80-200(Ⅰ)B |
61 87 113 |
16.9 24.2 31.4 |
41 38 32 |
61 71 69 |
2900 |
15 |
4.0 |
| 80-125 |
35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 |
5.5 |
3.0 |
80-250(Ⅰ) |
70 100 130 |
19.4 27.8 36.1 |
87 80 68 |
62 69 68 |
2900 |
37 |
4.0 |
| 80-125A |
31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 |
4 |
3.0 |
80-250(Ⅰ)A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
76 70 59.5 |
61 68 67 |
2900 |
30 |
4.0 |
| 80-160 |
35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 |
7.5 |
3.0 |
80-250(Ⅰ)B |
61 87 113 |
16.9 24.2 31.4 |
65 60 51 |
58 66 64 |
2900 |
30 |
4.0 |
| 80-160A |
32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 24 |
62 70 69 |
2900 |
7.5 |
3.0 |
80-315(Ⅰ) |
70 100 130 |
19.4 27.8 36.1 |
132 125 114 |
55 66 67 |
2900 |
75 |
4.0 |
| 80-160B |
30.3 43.3 56.3 |
8.4 12.0 15.6 |
26 24 21 |
60 69 67 |
2900 |
5.5 |
3.0 |
80-315(Ⅰ)A |
66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 13 |
55 66 67 |
2900 |
55 |
4.0 |
| 80-200 |
35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 |
15 |
3.0 |
80-315(Ⅰ)B |
63 90 117 |
17.5 25 32.5 |
106.6 101 92 |
52 64 64 |
2900 |
45 |
4.0 |
| 80-200A |
32.8 47 61 |
9.1 13.4 16.9 |
47 44 40 |
55 66 67 |
2900 |
11 |
3.0 |
80-315(Ⅰ)C |
58 82 107 |
16.1 22.8 29.7 |
90 85 76 |
50 62 61 |
2900 |
37 |
4.0 |
| 80-200B |
30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
52 65 65 |
2900 |
7.5 |
3.0 |
100-100 |
70 100 130 |
19.4 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 |
5.5 |
4.5 |
| 80-250 |
35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 |
22 |
3.0 |
100-100A |
62.6 89 116 |
17.4 24.7 32.2 |
11 10 8.8 |
64 74 74 |
2900 |
4 |
4.5 |
| 80-250A |
32.5 46.7 61 |
9.03 13.0 16.9 |
73 70 68 |
52 59 60 |
2900 |
18.5 |
3.0 |
100-125 |
70 100 130 |
19.4 27.8 36.1 |
23.5 20 14 |
70 76 65 |
2900 |
11 |
4.5 |
| 80-250B |
30 43.3 56 |
8.3 12.0 15.6 |
62 60 54 |
50 58 58 |
2900 |
15 |
3.0 |
100-125A |
62.6 89 116 |
17.4 24.7 32.2 |
19 16 11 |
68 74 63 |
2900 |
7.5 |
4.5 |
| 80-315 |
35 50 65 |
9.72 13.9 18.1 |
128 125 122 |
43 54 57 |
2900 |
37 |
3.0 |
100-160 |
70 100 130 |
19.4 27.8 36.1 |
36.5 32 24 |
70 76 65 |
2900 |
15 |
4.5 |
| 80-315A |
32.5 46.6 60.6 |
9.03 12.9 16.8 |
112.6 110 107.4 |
43 54 57 |
2900 |
37 |
3.0 |
100-160A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
32 28 21 |
68 74 67 |
2900 |
11 |
4.5 |
| 80-315B |
31 44.5 58 |
8.6 12.4 16.1 |
102.5 100 98 |
41 53 55 |
2900 |
30 |
3.0 |
100-160B |
60.6 86.6 112.5 |
16.8 24.1 31.3 |
27 24 18 |
66 72 64 |
2900 |
11 |
4.5 |
| 80-315C |
29 41 53.6 |
8.1 11.4 14.9 |
87 85 83 |
39 51 51 |
2900 |
22 |
3.0 |
100-200 |
70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
65 74 73 |
2900 |
22 |
4.0 |
| 80-100(Ⅰ) |
70 100 130 |
19.4 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 |
5.5 |
4.5 |
100-200A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
47.5 44 37 |
64 73 72 |
2900 |
18.5 |
4.0 |
| 80-100(Ⅰ)A |
62.6 89 116 |
17.4 24.7 32.2 |
11 10 8.8 |
64 74 74 |
2900 |
4 |
4.5 |
100-200B |
61 87 113 |
16.9 24.2 31.4 |
41 38 32 |
62 71 69 |
2900 |
15 |
4.0 |
| 型號 |
流量Q |
揚程 m |
效率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
型號 |
流量 |
揚程 m |
效 率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
| m3/h |
l/s |
m3/h |
l/s |
| 80-125(Ⅰ) |
70 100 130 |
19.4 27.8 36.1 |
23.5 20 14 |
70 76 65 |
2900 |
11 |
4.5 |
100-250 |
70 100 130 |
19.4 27.8 36.1 |
87 80 68 |
62 69 68 |
2900 |
37 |
4.0 |
| 80-125(Ⅰ)A |
62.6 89 116 |
17.4 24.7 32.2 |
19 16 11 |
68 74 63 |
2900 |
7.5 |
4.5 |
100-250A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
76 70 59.5 |
61 68 67 |
2900 |
30 |
4.0 |
| 100-135 |
70 100 130 |
19.4 27.8 36.1 |
132 125 114 |
55 66 67 |
2800 |
75 |
4.0 |
150-250 |
140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 |
18.5 |
3.0 |
| 100-135A |
66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 103 |
55 66 67 |
2800 |
55 |
4.0 |
150-250A |
129 184.4 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 |
15 |
3.0 |
| 100-135B |
63 90 117 |
17.5 25.0 32.5 |
106.6 101 92 |
54 65 66 |
2900 |
45 |
4.0 |
150-250B |
117 167 217.5 |
32.5 46.4 60.4 |
15.2 13.9 11.8 |
70 76 73 |
1450 |
11 |
3.0 |
| 100-135C |
58 82 107 |
16.1 22.8 29.7 |
90 85 76 |
51 63 63 |
2900 |
37 |
4.0 |
150-315 |
140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 73 |
1450 |
30 |
3.5 |
| 125-100 |
96 160 192 |
26.7 44.4 53.3 |
13 12.5 12 |
63 80 76 |
2900 |
11 |
4.0 |
150-315A |
131 187 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
69 77 77 |
1450 |
22 |
3.5 |
| 125-100A |
86 143 172 |
23.9 39.7 47.8 |
10.4 10 9.6 |
60 77 74 |
2800 |
7.5 |
4.0 |
150-315B |
212 173 225 |
33.6 48.1 62.5 |
25 24 21 |
60 75 69 |
1450 |
18.5 |
3.5 |
| 125-125 |
96 160 192 |
26.7 44.4 53.3 |
22.6 20 17 |
62 78 78 |
2800 |
15 |
4.0 |
150-400 |
140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 |
45 |
3.5 |
| 125-125A |
86 143 172 |
23.9 39.7 47.8 |
18 16 13.6 |
60 76 76 |
2800 |
11 |
4.0 |
150-400A |
131 187 243 |
36.4 51.9 67.5 |
46.6 4 38.3 |
67 74 70 |
1450 |
37 |
3.5 |
| 125-160 |
96 160 192 |
26.7 44.4 53.3 |
36 32 28 |
64 78 66 |
2800 |
22 |
4.0 |
150-400B |
122 174 226.5 |
33.9 48.3 62.9 |
40 38 33 |
66 73 68 |
1450 |
30 |
3.5 |
| 125-160A |
90 150 180 |
25 41.7 50 |
31.5 28 24.5 |
62 876 64 |
2800 |
18.5 |
4.0 |
150-400C |
112 160 208 |
31.1 44.4 57.8 |
34 32 28 |
64 71 65 |
1450 |
22 |
3.5 |
| 125-160B |
83 138 166 |
21.7 38.3 46.1 |
27 24 21 |
58 73 60 |
2800 |
15 |
4.0 |
150-250(Ⅰ) |
120 200 240 |
33.3 55.6 66.7 |
87 80 72 |
65 76 74 |
2900 |
75 |
4.5 |
| 125-200 |
96 160 192 |
26.7 44.4 53.3 |
55 50 46 |
65 77 76 |
2800 |
37 |
5.5 |
150-250(Ⅰ)A |
112 187 224 |
31.1 51.9 62.2 |
76 70 63 |
64 75 73 |
2900 |
55 |
4.5 |
| 125-200A |
90 150 180 |
25 41.7 50 |
48.4 44 40.5 |
63 75 74 |
2800 |
30 |
5.5 |
150-250(Ⅰ)B |
104 173 208 |
28.9 48.1 57.8 |
65 60 54 |
63 74 72 |
2900 |
45 |
4.5 |
| 125-200B |
83 138 166 |
21.7 38.3 46.1 |
41.3 37.5 34.5 |
61 73 72 |
2800 |
22 |
5.5 |
150-315(Ⅰ) |
120 200 240 |
33.3 55.6 66.7 |
133 125 120 |
58 73 75 |
2900 |
110 |
4.5 |
| 125-250 |
96 160 192 |
26.7 44.4 53.3 |
87 80 73 |
61 75 72 |
2800 |
55 |
5.0 |
150-315(Ⅰ)A |
112 187 224 |
31.1 51.9 62.2 |
116 110 105 |
57 72 74 |
2900 |
90 |
4.5 |
| 125-250A |
90 150 180 |
25 41.7 50 |
76 70 64 |
60 74 71 |
2800 |
45 |
5.0 |
150-315(Ⅰ)B |
104 173 208 |
28.9 48.1 57.8 |
100 95 91 |
55 70 72 |
2900 |
75 |
4.5 |
| 125-250B |
83 138 166 |
21.7 38.3 46.1 |
65 60 55 |
58 72 68 |
2800 |
37 |
5.0 |
200-200 |
140 400 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 |
15 |
3.0 |
| 125-315 |
96 160 192 |
26.7 44.7 53.3 |
133 125 119 |
55 70 72 |
2800 |
90 |
5.0 |
200-200A |
125 179 232.5 |
34.7 49.7 64.6 |
11 10 8.5 |
66 76 76 |
1450 |
11 |
3.0 |
| 125-315A |
90 150 180 |
25 41.7 50 |
117 110 104.6 |
54 69 71 |
2800 |
75 |
5.0 |
200-250 |
140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 |
18.5 |
3.0 |
| 125-315B |
86 143 172 |
23.9 39.7 47.8 |
106.4 100 95.2 |
53 68 70 |
2800 |
75 |
5.0 |
200-250A |
129 184.4 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 |
15 |
3.0 |
| 型號 |
流量Q |
揚程 m |
效率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
型號 |
流量 |
揚程 m |
效 率 % |
轉速 r/min |
電機功率 KW |
必需汽蝕余量 M |
| m3/h |
l/s |
m3/h |
l/s |
| 125-315C |
80.5 134 161 |
22.4 37.2 44.7 |
93.3 87.7 83.5 |
50 65 66 |
2800 |
55 |
5.0 |
200-250B |
117 167 217.5 |
32.5 46.4 60.4 |
15.2 14 12 |
70 76 73 |
1450 |
11 |
3.0 |
| 150-200 |
140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 |
15 |
3.0 |
200-315 |
140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 78 |
1450 |
30 |
3.5 |
| 150-200A |
125 179 232.5 |
34.7 49.7 64.6 |
11 10 8.5 |
66 76 76 |
1450 |
11 |
3.0 |
200-315A |
131 187 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
69 77 77 |
1450 |
22 |
3.5 |
| 200-315B |
121 173 225 |
33.6 48.1 62.5 |
25 24 21 |
67 75 74 |
1450 |
18.5 |
3.5 |
200-400(Ⅰ)B |
242 346 450 |
67.2 96.1 125 |
40.8 37.4 29.2 |
72 78 74 |
1450 |
55 |
5.0 |
| 200-400 |
140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 |
45 |
3.5 |
200-400(Ⅰ)C |
224 320 416 |
62.2 88.9 115.6 |
34.9 32 25 |
70 76 71 |
1450 |
45 |
5.0 |
| 200-400A |
131 187 243 |
36.4 51.9 67.5 |
46.6 44 38.3 |
67 74 70 |
1450 |
37 |
3.5 |
300-235 |
480 720 900 |
133.3 200 250 |
20 18 15.5 |
77 81 74 |
970 |
55 |
5.0 |
| 200-400B |
122 174 226.5 |
33.9 48.3 62.9 |
40 38 33 |
66 73 68 |
1450 |
30 |
3.5 |
300-235A |
438 657 821 |
121.7 182.5 228.1 |
16.7 15 12.9 |
75 79 72 |
970 |
45 |
5.0 |
| 200-400C |
112 160 208 |
31.3 44.4 57.8 |
34 32 28 |
63 71 65 |
1450 |
22 |
3.5 |
300-235B |
400 600 750 |
111.1 167.0 208.3 |
13.9 12.5 10.8 |
73 77 70 |
970 |
37 |
5.0 |
| 200-200(Ⅰ) |
280 400 520 |
77.85 111.1 144 |
13.4 12.5 10.5 |
70 80 79 |
1450 |
22 |
4.0 |
300-300 |
480 720 900 |
133.3 200 250 |
31 28 25 |
77 81 77 |
970 |
75 |
5.0 |
| 200-200(Ⅰ)A |
250 358 465 |
69.4 99.4 129.2 |
10.7 10 8.5 |
68 78 77 |
1450 |
18.5 |
4.0 |
300-300A |
444 666 779 |
123.3 185 231.4 |
26.5 24 21.4 |
76 80 76 |
970 |
75 |
5.0 |
| 200-250(Ⅰ) |
280 400 520 |
77.8 111.4 144 |
22.2 20 14 |
75 80 72 |
1450 |
30 |
4.0 |
300-300B |
415 623 779 |
115.3 173.1 216.4 |
23 21 18.5 |
74 78 73 |
970 |
55 |
5.0 |
| 200-250(Ⅰ)A |
250 358 465 |
69.4 99.4 129.2 |
18 16 11.2 |
73 78 70 |
1450 |
22 |
4.0 |
300-380 |
480 720 900 |
133.3 200 250 |
48 44 34 |
75 84 79 |
970 |
132 |
5.0 |
| 200-250(Ⅰ)B |
226 322 419 |
62.8 89.4 116.2 |
14.4 13 7.3 |
70 75 67 |
1450 |
18.5 |
4.0 |
300-380A |
444 666 833 |
123.3 185 231.4 |
41.4 37.6 29.1 |
74 82 79 |
970 |
110 |
5.0 |
| 200-315(Ⅰ) |
280 400 520 |
77.8 111.4 144 |
36 32 26 |
73 80 75 |
1450 |
55 |
4.0 |
300-380B |
409 614 767 |
113.6 170.6 213.1 |
35 32 25 |
74 78 76 |
970 |
90 |
5.0 |
| 200-315(Ⅰ)A |
262 374 486 |
72.8 103.9 135 |
31.5 28 23 |
72 79 74 |
1450 |
45 |
4.0 |
300-235(Ⅰ) |
718 1080 |
199.4 300 |
44.6 40 |
78 82 |
1450 |
160 |
7.5 |
| 200-315(Ⅰ)B |
242 346 450 |
67.2 96.1 125 |
27 24 19.5 |
70 77 71 |
1450 |
37 |
4.0 |
300-235(Ⅰ)A |
642 965 1203 |
178.3 268.1 334.2 |
35.7 32 27.7 |
73 80 74 |
1450 |
132 |
7.5 |
| 200-400(Ⅰ |
280 400 520 |
77.8 111.4 144 |
54.5 50 39 |
75 81 77 |
1450 |
75 |
4.0 |
|
|
|
|
|
|
|
|
| 200-400(Ⅰ)A |
262 374 486 |
72.8 103.9 135 |
47.6 43.7 34.1 |
74 80 76 |
1450 |
75 |
4.0 |
|
|
|
|
|
|
|
|
|
