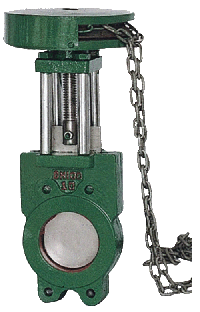

Z73X鏈輪式漿液閥 |
主要性能規范
|
公稱壓力PN（MPa) |
試驗壓力（MPa) |
適用介質 |
工作溫度（℃） |
|
殼體 |
密封 |
|
0.6 |
0.9 |
0.66 |
煤漿、糧漿、紙漿、泥漿、活水砂漿、礦渣、堿液 |
≤80℃ |
|
1.0 |
1.5 |
1.1 |
主要外形及連接尺寸
|
DN |
L |
D1 |
D2 |
H |
n-M |
|
0.6 |
1.0 |
|
50 |
48 |
48 |
100 |
125 |
330 |
4-M16 |
|
65 |
48 |
48 |
120 |
145 |
340 |
4-M16 |
|
80 |
50 |
50 |
135 |
160 |
380 |
8-M16 |
|
100 |
50 |
50 |
155 |
180 |
440 |
8-M16 |
|
125 |
50 |
50 |
185 |
210 |
500 |
8-M16 |
|
150 |
60 |
60 |
210 |
240 |
600 |
8-M20 |
|
200 |
60 |
60 |
265 |
295 |
700 |
8-M20 |
|
250 |
70 |
70 |
320 |
350 |
890 |
12-M20 |
|
300 |
70 |
80 |
368 |
400 |
1050 |
12-M20 |
|
350 |
80 |
90 |
428 |
460 |
1160 |
16-M20 |
|
400 |
80 |
120 |
482 |
515 |
1200 |
16-M22 |
|
| |
|
| |
|
 |
 |
