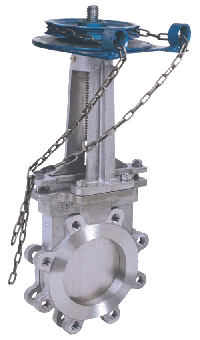

PZ43H/Y鏈輪單夾式刀型閘閥(梅花型) |
鏈輪單夾式閘閥主要外形及連接尺寸(mm)
|
MPa |
DN |
L |
D1 |
D2 |
H |
n-M |
MPa |
DN |
L |
D1 |
D2 |
H |
n-M |
|
0.6
MPa |
50 |
48 |
90 |
110 |
325 |
4-M12 |
1.0
MPa |
50 |
48 |
100 |
125 |
325 |
4-M16 |
|
65 |
48 |
110 |
130 |
340 |
4-M12 |
65 |
48 |
120 |
145 |
340 |
4-M16 |
|
80 |
51 |
125 |
150 |
355 |
4-M16 |
80 |
51 |
135 |
160 |
355 |
4-M16 |
|
100 |
51 |
145 |
170 |
405 |
4-M16 |
100 |
51 |
155 |
180 |
405 |
8-M16 |
|
125 |
57 |
175 |
200 |
440 |
8-M16 |
125 |
57 |
185 |
210 |
440 |
8-M16 |
|
150 |
57 |
200 |
225 |
520 |
8-M16 |
150 |
57 |
210 |
240 |
520 |
8-M20 |
|
200 |
70 |
255 |
280 |
580 |
8-M16 |
200 |
70 |
265 |
295 |
580 |
8-M20 |
|
250 |
70 |
310 |
335 |
670 |
12-M16 |
250 |
70 |
320 |
350 |
670 |
12-M20 |
|
300 |
76 |
362 |
395 |
820 |
12-M20 |
300 |
76 |
368 |
400 |
820 |
12-M20 |
|
350 |
76 |
412 |
445 |
925 |
12-M20 |
350 |
76 |
428 |
460 |
925 |
16-M20 |
|
400 |
89 |
462 |
495 |
1030 |
16-M20 |
400 |
89 |
482 |
515 |
1030 |
16-M22 |
|
| |
|
| |
|
 |
 |
