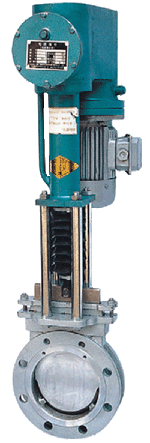

PZ273H/Y電液動刀型閘閥 |
電液動刀型閘閥主要外形及連接尺寸(mm)
|
MPa |
DN |
L |
D1 |
D2 |
H |
A |
B |
N-M |
|
0.6 |
50 |
43 |
90 |
110 |
650 |
160 |
140 |
4-M12 |
|
65 |
46 |
110 |
130 |
670 |
160 |
140 |
4-M12 |
|
80 |
46 |
125 |
150 |
685 |
160 |
140 |
4-M16 |
|
100 |
52 |
145 |
170 |
755 |
200 |
160 |
4-M16 |
|
125 |
56 |
175 |
200 |
790 |
200 |
160 |
8-M16 |
|
150 |
56 |
200 |
225 |
865 |
200 |
160 |
8-M16 |
|
200 |
60 |
255 |
280 |
940 |
220 |
180 |
8-M16 |
|
250 |
68 |
310 |
335 |
1030 |
220 |
180 |
12-M16 |
|
300 |
78 |
362 |
395 |
1180 |
220 |
180 |
12-M20 |
|
350 |
78 |
412 |
445 |
1285 |
220 |
180 |
12-M20 |
|
400 |
102 |
462 |
495 |
1390 |
240 |
220 |
16-M20 |
|
450 |
114 |
518 |
550 |
1500 |
240 |
220 |
16-M20 |
|
500 |
127 |
568 |
600 |
1600 |
240 |
220 |
16-M20 |
|
1.0 |
50 |
43 |
100 |
125 |
650 |
160 |
140 |
4-M16 |
|
65 |
46 |
120 |
145 |
670 |
160 |
140 |
4-M16 |
|
80 |
46 |
135 |
160 |
685 |
160 |
140 |
4-M16 |
|
100 |
52 |
155 |
180 |
755 |
200 |
160 |
8-M16 |
|
125 |
56 |
185 |
210 |
790 |
200 |
160 |
8-M16 |
|
150 |
56 |
210 |
240 |
865 |
200 |
160 |
8-M20 |
|
200 |
60 |
265 |
295 |
940 |
220 |
180 |
8-M20 |
|
250 |
68 |
320 |
350 |
1030 |
220 |
180 |
12-M20 |
|
300 |
78 |
368 |
400 |
1180 |
220 |
180 |
12-M20 |
|
350 |
78 |
428 |
460 |
1285 |
220 |
180 |
16-M20 |
|
400 |
102 |
482 |
515 |
1390 |
240 |
220 |
16-M20 |
|
450 |
114 |
532 |
565 |
1500 |
240 |
220 |
20-M22 |
|
500 |
127 |
585 |
620 |
1600 |
240 |
220 |
20-M22 |
|
| |
|
| |
|
 |
 |
