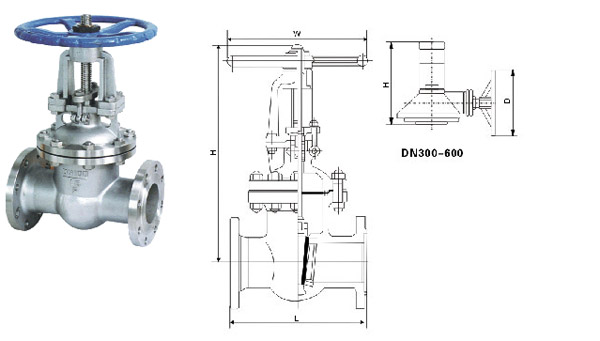

Z41W法蘭式不銹鋼閘閥 |
應用規范:
1、設計制造按GB12234-89
2、結構長度按GB12221-89
3、法蘭尺寸按JB/T79-94
4、閥門檢查和試驗按GB13927
性能規范
|
型號
|
公稱壓力
(MPa) |
實驗壓力 |
工作溫度(℃) |
適用介質 |
|
強度(水)(Mpa) |
密封(水)空氣 |
低壓密封空氣(Mpa) |
|
Z4IH-16C
Z41W-16P(R) |
1.6 |
2.4 |
1.8 |
0.6 |
≤200 |
NITRICACID |
|
硝酸類 |
|
ACETICACID |
|
醋酸類 |
|
NITRICACID |
|
Z41W-25P(R) |
2.5 |
3.8 |
2.8 |
0.6 |
≤200 |
硝酸類 |
|
Z41W-40P(R) |
4.0 |
6.0 |
4.4 |
0.6 |
≤200 |
ACETICACID |
|
Z41W-64P(R) |
6.4 |
9.6 |
7.0 |
0.6 |
≤200 |
醋酸類 |
主要零件材質
|
閥體/閥蓋 |
ZG1Cr18Ni9Ti |
ZG00Cr18Ni10 |
ZG1Cr18Ni12Mo2Ti |
ZG00Cr17Ni14Mo2 |
WCB |
|
零件名稱 |
ZG1Cr18Ni9Ti系列 |
ZG00Cr18Ni10系列 |
ZG1Cr18Ni12Mo2Ti系列 |
ZG00Cr17Ni14Mo2系列 |
WCB系列 |
|
閘板 |
ZG1Cr18NI9Ti |
ZG00Cr18Ni10 |
ZG1Cr18Ni12Mo2Ti |
ZG00Cr17Ni14Mo2 |
1Cr13 |
|
閥桿 |
1Cr18Ni9Ti |
ooCr18Ni10 |
1Cr18Ni12Mo2Ti |
ooCr17Ni14Mo2 |
1Cr13 |
|
填料 |
PTFE編織 |
PTFE編織 |
PTFE編織 |
PTFE編織 |
石墨Graphite |
|
墊片 |
304L+PTFE |
304L+PTFE |
316L+PTFE |
316L+PTFE |
石墨+304
Graphite+304 |
|
壓蓋 |
ZG1Cr181Ni10 |
ZG00Cr18Ni10 |
ZG1Cr18Ni12Mo2Ti |
ZG00Cr17Ni14Mo2 |
WCB |
|
填料壓環 |
1Cr18Ni9Ti |
00Cr18Ni10 |
1Cr18Mi12Mo2Ti |
00Cr17Ni14Mo2 |
1Cr13 |
|
螺栓 |
1Cr171Ni2 |
1Cr171Ni2 |
1Cr171Ni2 |
1Cr171Ni2 |
35CrMoA |
|
螺母 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
45 |
|
| |
|
| |
|
 |
 |
